PROFESSIONAL POWER

FEATURING A VIDEO PROCESSING ENGINE UP TO 4096x2160 PIXELS

In designing these monitors, the priority was to satisfy the full performance and capabilities required by broadcast and film professionals. These include:
No compromises in core features like accurate color reproduction, extensive signal support and picture quality
Exceptional 4K capabilities to easily manage complex High Dynamic Range (HDR) workflows
Future proof platform design which allows adaptation to emerging technologies and upcoming standards
Fast and easy setup and operation, even in challenging life TV applications
The HDQLINE series of multi-standard monitors are ideally suited for challenging high-end applications – wherever the brilliance and sharpness of ultra-high resolution images together with state of the art usability and future proofness are required.

MONITOR LINE-UP

Discover our range of professional monitors for reference, broadcast and professional applications.

HD/2KUHD/4KReference MonitorWall Borderless
~17-18"
Rackmount		HDP 185-B NEW
HDL 185-B (low profile) NEW		QDP 173-A
QDL 173-A (low profile)
~21"HDP 215-A
~24"HDP 240-A
QDP 240-B
~27"QDP 270-A
QDP 270 HC-A NEW
~32"QDP 320-C
QDP 320 HC-A
QRDP 310-A Limited
QRDP 310-B Limited
~42"HDP 420-A LimitedQDP 430-C
~49"QDP 490-C
~55"HDP 550-A LimitedQDP 550-CHDP 550 XSB-A
~65"QDP 650-C

All Products

QDP 270 HC-A

QDP 270 HC-A

Size: 27"
Resolution: UHD
Brightness: 400 cd
HDP 185-B

HDP 185-B

Size: 18.5"
Resolution: HD
Brightness: 500 cd
HDL 185-B

HDL 185-B

Size: 18.5"
Resolution: HD
Brightness: 500 cd
Note: Low profile
QDP 320-C

QDP 320-C

Size: 31.5"
Resolution: UHD
Brightness: 450 cd
QDP 320 HC-A

QDP 320 HC-A

Size: 31.5"
Resolution: UHD
Brightness: 400 cd
QDP 430-C

QDP 430-C

Size: 43"
Resolution: UHD
Brightness: 700 cd
QDP 270-A

QDP 270-A

Size: 27"
Resolution: UHD
Brightness: 450 cd

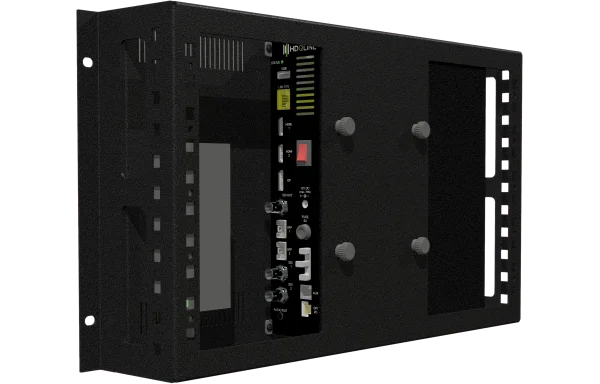

Rackmount 18

Rackmount 18
Rackmount 17

Rackmount 17
QIO 12G

QIO 12G
Q-AUX-KBD

Q-AUX-KBD
Q-UM-KBD

Q-UM-KBD

MAIN FEATURES


- Quad Split Multiple Input Formats
- UHD/4K SQD/2SI*
- Dual Link (1.5G, SMPTE 372M)
- Split A/B (Split View, Side by Side)
- Screensaver
- Internal Test Signal Generator
- Aspect Ratio (4:3, 16:9 Top Center Bottom, UMD Shrink TOP Bottom)

- Backlight Control
- Brightness (Bias)
- Black Lift
- Gain x2
- Chroma x2
- Color Separation (R/G/B only/off, Y/Cr/Cb only/off)
- Custom White Point Adjustment
- Color Space (BT.709/BT.2020/DCI-P3)
- YUV/RGB Matrix (Bt.601/Bt.709/Bt.2020)
- EOTF up to 8 container
  - Gamma 1.8 to 2.6
  - S-LOG 3 (different cd/m² Peaks)
 - HLG (different cd/m² Peaks)
 - PQ (different cd/m² Peaks)
- Support for SMPTE ST352 VPID (Video Payload ID) identifies EOTF and Colorspace, auto switching feature
- Split EOTF function (left/right)*
- False Color Luminance with different scales
  (Nits, Candela, Code Values, Stop Units)
- Uniformity correction

Other

- Screenshot feature, save reference image
- Load and compare reference image
- Freeze function
- DCS+ Preview
- Monitor Settings Backup, Clone and Restore function

Widgets

- 8x Tally
- 4x Border Tally
- 4x UMD/IMD

- Vertical/Horizontal Audio Level Meter Display
- Waveform/Vectorscope/CIE Chart (freely positionable)
- Timecode
- Clock

- 2x Safe Area Layer (EBU/SMPTE/BBC/User)
- Center Cross

Fast Setup and Control

- OSD (on screen display)
- Up to 10 Custom Presets
- Display Control Suite, DCS+
- Color calibration MATCH+ (3D LUT)
- GPI I/O
- TSL 5.x
- Image Video
- Ember+
- NTP

General

- Keyboard lock
- User level feature lock, Preset protection
- Firmware update over Ethernet or USB
- 24/7 operation, optimized for long life
- Excellent remote control and monitoring capabilities

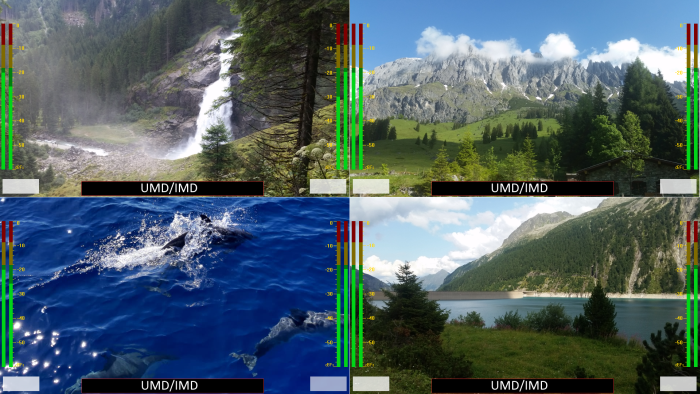

Quad Split

All HDQLINE monitors include a Multi-viewer function with low processing delay. Each quadrant can use 1x UMD, 2x Tally or Border Tally, Timecode and 4 Channel Audio Level Meters.

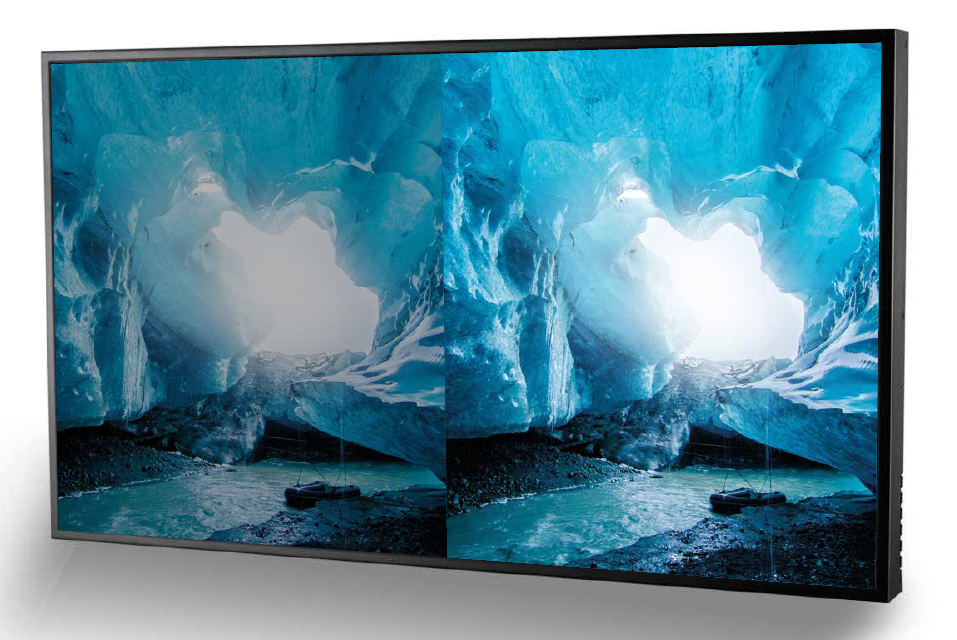

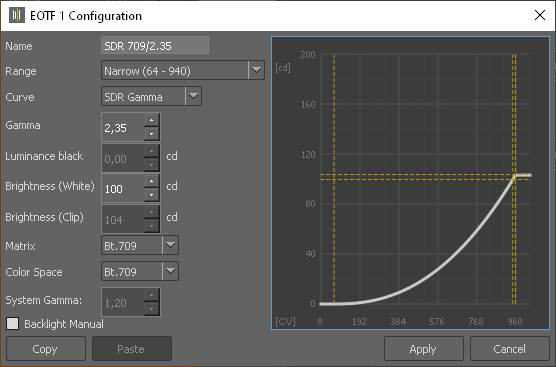

HDR preview option

A set of EOTF (electro optical transfer function) curves, perfectly adapted to the LCD panel build in the monitor, render images to appear closer to how the human eye perceives the real world compared to existing SDR monitors. Up to 8 different curves are available in the monitor. The list of supported HDR formats include HLG, PQ, Sony S-Log3, and ARRI LogC.
EOTF Split, split screen function, allows to compare the impact of 2 different EOTFs on a single image (available on UHD models).

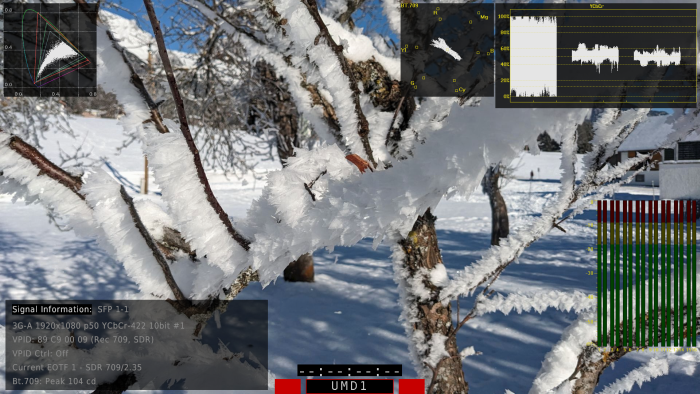

Widgets

HDQLINE monitors can display a variety of additional information needed by professionals. This includes up to 16 Channel Audio Level Meters (Vertical/Horizontal), static and dynamic UMD, Timecode (ATC) display, Clock and TV Standard display including VPID decoding, ANC list and event log. Furthermore, various markers can be used, e.g. for aspect ratio, safe area and center. In addition to norm settings according to SMPTE and EBU specifications, each marker can be set manually.

Fast & Easy Configuration

The DCS+ software allows fast and super easy color space and EOTF configuration for any HDQLINE monitor.You can create your setup once and clone it to any number of monitors. Additionally you can backup your complete monitor configuration and do a one click restore whenever it becomes necessary.

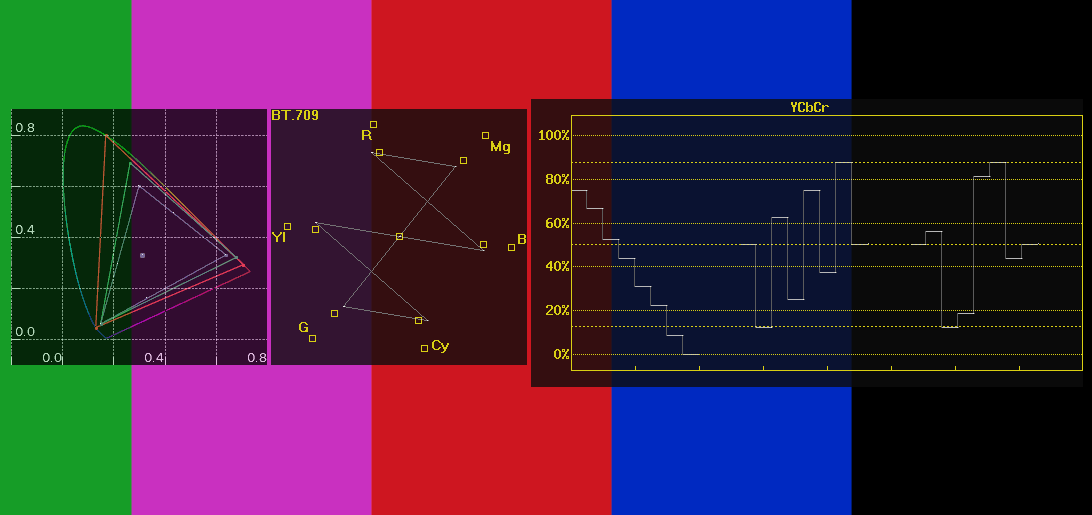

Waveform / Vectorscope

Real time Waveform,Vectorscope and CIE Chart. Select between Y, Cb, Cr, R, G, B Waveform and different sizes of scopes. Vector Scale Bt.601, Bt.709 and Bt.2020. Locate the scopes anywhere on the screen.

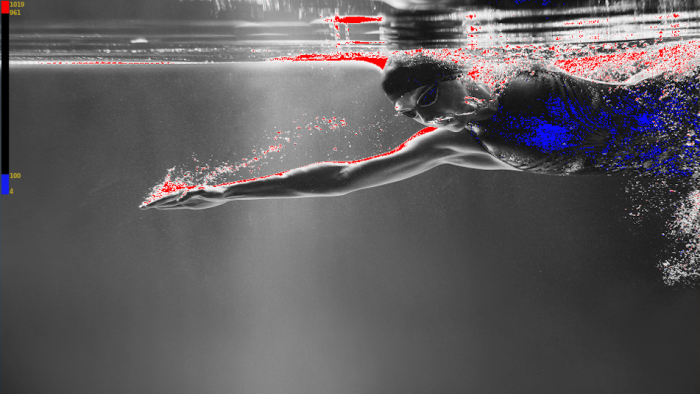

False Color Luminance

Input signal’s luminance level is analyzed and gets marked with a false color. This can be used by the operator to quickly identify and adjust the luminance level of objects. There are 8 predefined sets with different scales (Nits, Candela, Code Values, Stop Units) aviable. 8 more sets are fully user configurable via DCS+ software. This feature works for UHD/4K and HD signals.

Tally and Remote Control

HDQLINE monitors integrate easily with existing Tally systems and controllers. Dynamic and Static UMD / Tally support is provided via Ethernet network protocols (sonoVTS IMD / TALLY protocol / Image Video / TSL / Ember+) or up to 8 GPI contact closures, each GPI is individual configurable. In addition, an optional hardware control panel is available.

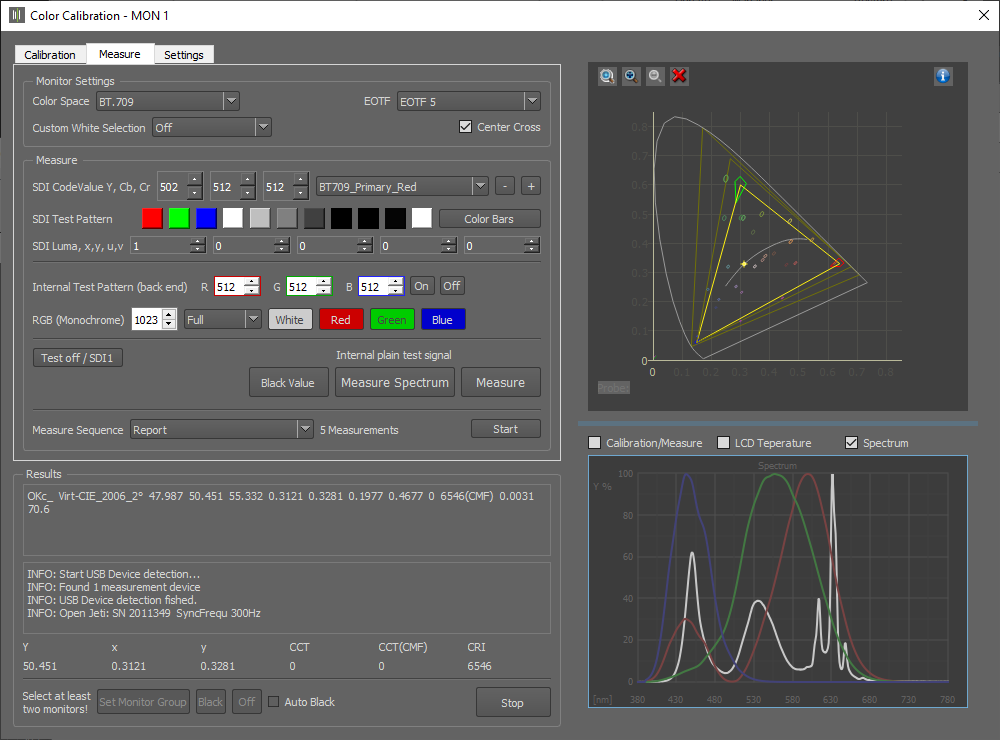

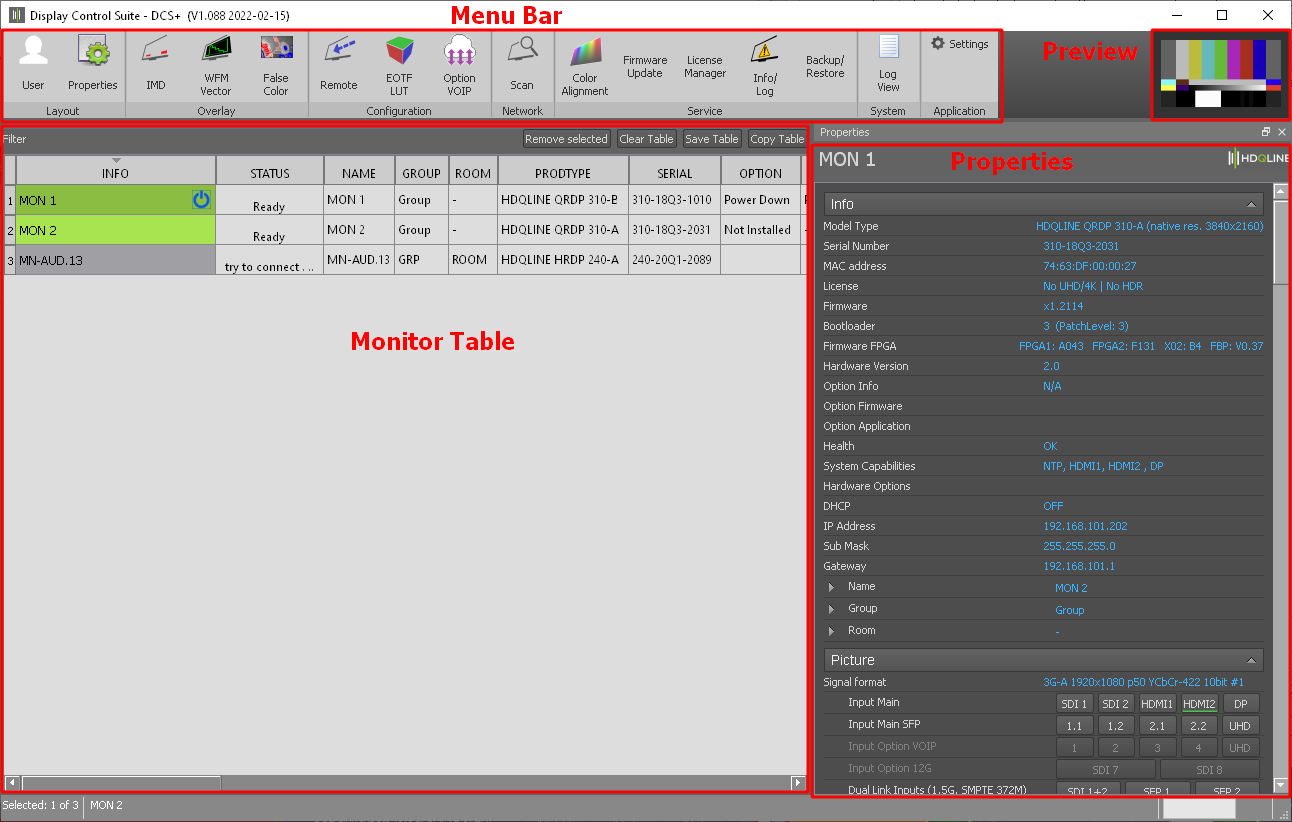

Display control software DCS+

The display control software (DCS+) is the graphically-orientated, intuitive and user-friendly tool to control all parameters on individual monitors as well as predefined groups of monitors in a larger installations like direction rooms or OB vans. The DCS+ makes it easy to maintain and control even large video wall installations.

Automatic colour adjustment Match+

True and stable colour reproduction under various conditions is essential for many applications. The newly developed Match+ plugin for our display control software, based on the experience of the renewed colour calibration tools of HD2LINE and QLine series, Match+ is the ultimate tool for automatic colour space adjustment. It supports many professional colorimeter/spectroradiometer measurement probes like Minolta CS200/CS2000, Klein K-10 or Jeti specbos 1211, Jeti spectraval 1501/1511 and Colorimetry Research CR-100/CR-300.

Options

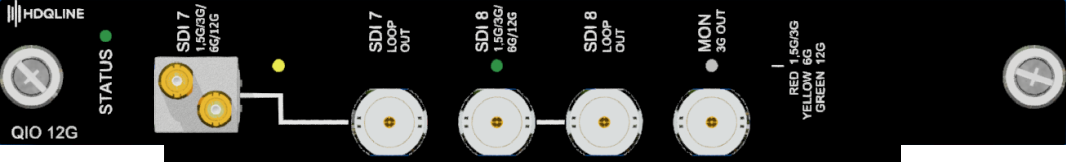

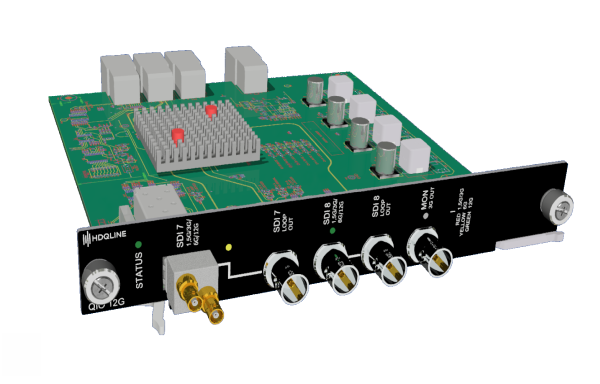

QIO 12G Input Module

This optional board adds 2x 12G SDI single link UHD/4K inputs to the HDQLINE monitor platform. To widen the application area one input supports SFP modules, thereby allowing fiber or copper connection.

Complete list of interfaces

- 1x 12G SDI input A (1.5G - 12G)
- Loop out A
- 1x 12G SDI input B (1.5G - 12G)
- Loop out B
- 1x 3G SDI output (monitors a single UHD quadrant)

-> 1x BNC
-> 1x BNC
-> 1x Coax/fiber (SFP module not included)
-> 1x BNC
-> 1x BNC

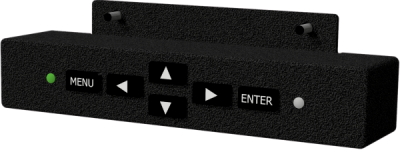

External Keyboards

The Q-UM-KBD optional under monitor keboard can be mounted to any HDQLINE monitor for front side OSD menu operation.

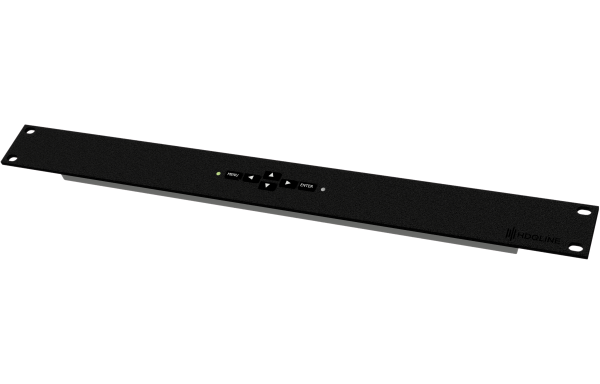

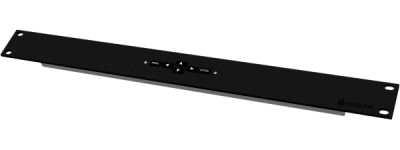

The Q-AUX-KBD optional rack mount keboard can be mounted into 19" racks to control any HDQLINE monitor.

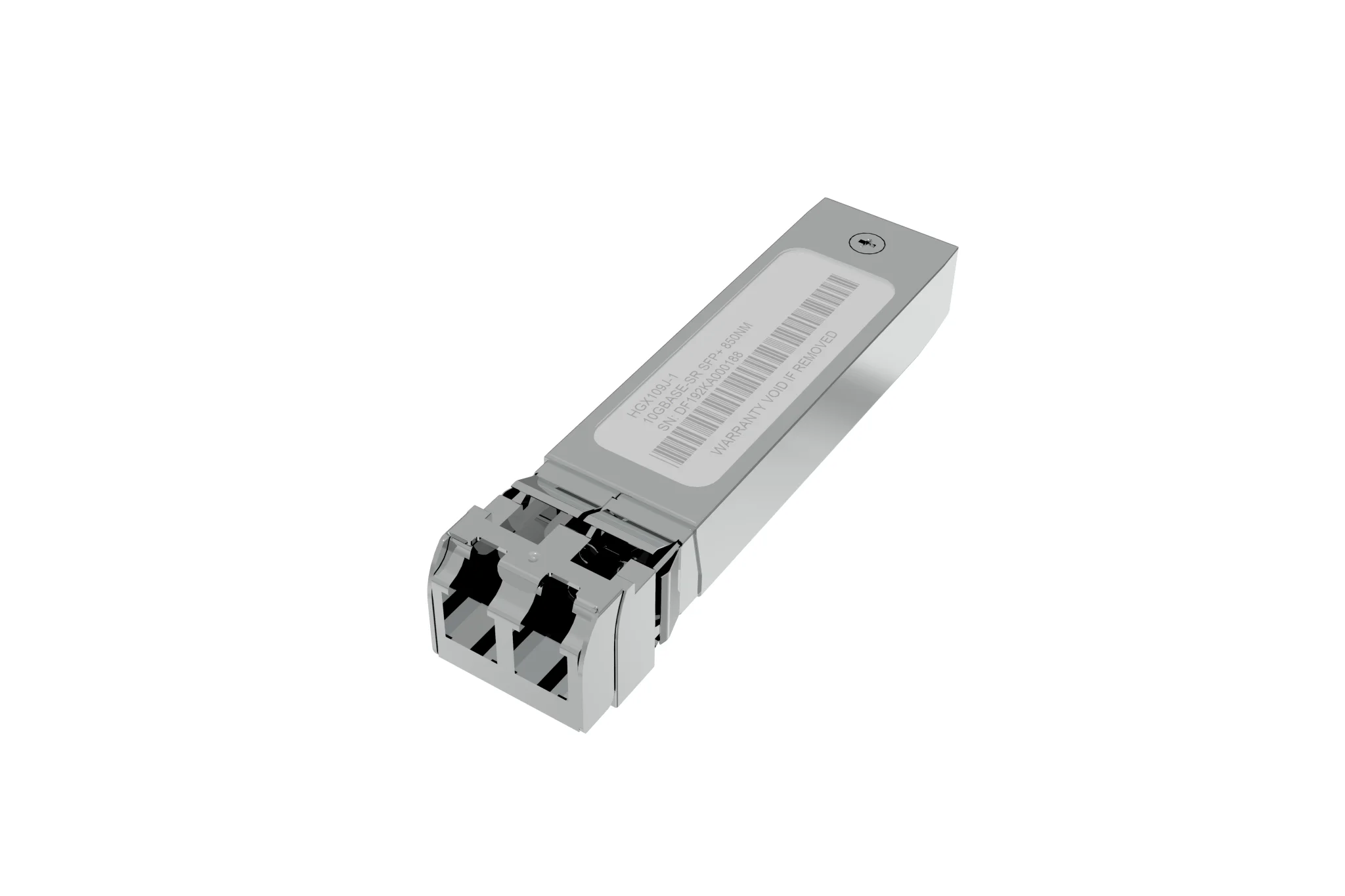

SFP Modules

  • SFP module dual 3G SDI RX coax (HD BNC) SFP-3G-SDI-DR
  • SFP module dual 3G SDI RX fiber (LC) SFP-3G-SDI-DR-OPT
  • SFP module dual 12G SDI RX coax (HD BNC) SFP-12G-SDI-COAX
  • SFP module dual 12G SDI RX fiber (LC) SFP-12G-SDI-DR-OPT
  • SFP module  2x decode channels SMPTE ST 2110 to SDI gateway 10G BASE-SR fiber (LC) SFP-VOIP-DR-OPT

Others

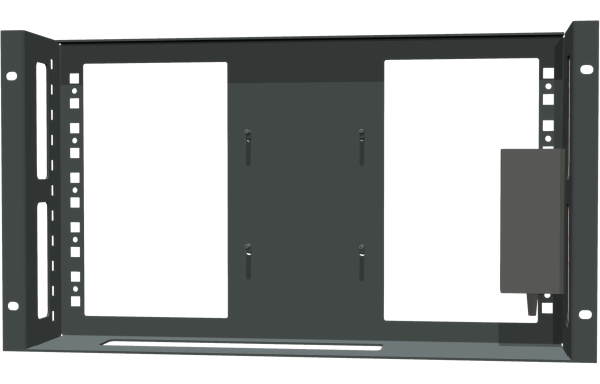

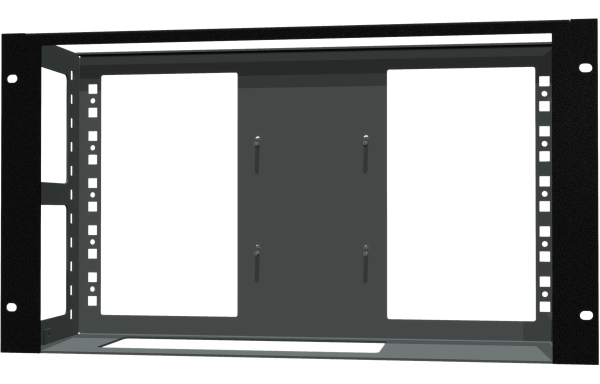

  • 19" rack mount kit for 17" and 18.5" monitors RACKMOUNT-17 / RACKMOUNT-18
  • VESA 400/200 adaptor Adaptor-VESA-400
  • Reference Light for calibrated ambient/wall lighting behind monitors (on request)
  • Calibrated control/direction room lighting  lamps (on request)

Services

  • Guidance for installation and operation
  • Color Calibration training
  • Color Calibration service
  • Extended warranty on request
  • Rental monitors available on request

Phone: +49 89 419671 0
Fax: +49 89 419671 9999
contact@hdqline.com

TECHNICAL SPECS

Inputs

- 2x BNC SDI input (3G SDI)
- 2x SFP Slots up to 4x 3G input (2x Dual coax/fiber)
- 1x HDMI(1) input (HDMI 2.0)*
- 1x HDMI(2) input (HDMI 1.3)
- 1x Display Port input (DP 1.1a)
- 1x AUX (RJ10, external keyboard, standard light control)
- 1x GPI I/O (RJ 45, 8pin)
- 1x USB (Firmware update/Layout save/load)
- 1x LAN 1GigE (RJ 45, display control/management)
- 1x Option Slot (Supports one optional I/O module)

Outputs

- 1x BNC output (3G SDI)
- 1x Audio output (Phone jack, analog stereo)

Color Space / Gamma / Motion Adapt.

- HDTV (ITU-R BT.709), SDTV (ITU-R BT.601) , UHDTV (ITU-R BT.2020)
- 6504 K (D65) or user selectable by DCS+ color calibration software
- Gamma correction 1.8, 2.0, 2.2, 2.35, 2.4, 2.6 or
   user selectable 1.8 - 2.6 in 0.05 steps
  SDR BT.1886, HLG, PQ, Sony SLOG-3
- High performance motion adaptive deinterlacer
- Scaling: Native / 4:3 / 16:9 / full screen / UMD / Quad / Side By Side / Split View / Meassure View

* Requires hardware revision  5.0 or later

SDI Video Format:

SMPTE ST2048-14096x2160p (48/50/59.94/60) 12G SDI Single Link*
SMPTE ST2082-10 3840x2160p (48/50/59.94/60) 12G SDI Single Link*
SMPTE ST2081-10 3840x2160p (23.98/24/25/29.97/30) 6G SDI Single Link*
SMPTE ST425-5 3840x2160p (48/50/59.94/60) 3G SDI Quad Link
SMPTE ST2743840x2160p (23.98/24/25/29.97/30) 1.5G SDI Quad Link
SMPTE ST425 Level A/B1920x1080p (23.98/24/25/29.97/30/48/50/59.94/60)
1920x1080i (50/59.94/60)
1920x1080psF (23.98/24/25/29.97/30)
1280x720p (23.98/24/25/29.97/30/50/59.94/60)
SMPTE ST274M1920x1080i (50/59.94/60)
1920x1080p(sF) (23.98/24/25/29.97/30)
SMPTE 372M1920x1080p (23.98/24/25/29.97/30/48/50/59.94/60) 1.5G Dual Link
SMPTE ST296M1280x720p (23.98/24/25/29.97/30/50/59.94/60)
SMPTE 259M720x487i (59.94)
720x576i (50)
* Requires optional QIO 12G input module.

HDMI/DP Video Format:

4096x2160 (DCI 4K)*23.98/24/25/29.97/30/50/59.94/60p RGB/YCbCr 4:4:4 8bpp, YCbCr 4:2:2 12/10/8bpp
3840x2160 (UHD)*23.98/24/25/29.97/30/50/59.94/60p RGB/YCbCr 4:4:4 8bpp, YCbCr 4:2:2 12/10/8bpp
2560x1600 (WQXGA)**50/59.94/60p RGB/YCbCr 4:4:4 12/10/8bpp, YCbCr 4:2:2 12/10/8bpp
2560x1440 (WQHD)**50/59.94/60p RGB/YCbCr 4:4:4 12/10/8bpp, YCbCr 4:2:2 12/10/8bpp
2048x1080 (DCI 2K)23.98/24/25/29.97/30/50/59.94/60p RGB/YCbCr 4:4:4 12/10/8bpp, YCbCr 4:2:2 12/10/8bpp
1920x1200 (WUXGA)23.98/24/25/29.97/30/50/59.94/60p RGB/YCbCr 4:4:4 12/10/8bpp, YCbCr 4:2:2 12/10/8bpp
1920x1080 (FHD)23.98/24/25/29.97/30/50/59.94/60p RGB/YCbCr 4:4:4 12/10/8bpp, YCbCr 4:2:2 12/10/8bpp
50/59.94/60i RGB/YCbCr 4:4:4 12/10/8bpp, YCbCr 4:2:2 12/10/8bpp
1680x1050 (WSXGA+)60p RGB/YCbCr 4:4:4 12/10/8bpp, YCbCr 4:2:2 12/10/8bpp
1600x1200 (UXGA)60p RGB/YCbCr 4:4:4 12/10/8bpp, YCbCr 4:2:2 12/10/8bpp
1440x900 (WXGA+)60p RGB/YCbCr 4:4:4 12/10/8bpp, YCbCr 4:2:2 12/10/8bpp
1366x76860p RGB/YCbCr 4:4:4 12/10/8bpp, YCbCr 4:2:2 12/10/8bpp
1360x76860p RGB/YCbCr 4:4:4 12/10/8bpp, YCbCr 4:2:2 12/10/8bpp
1280x1024 (SXGA)60p RGB/YCbCr 4:4:4 12/10/8bpp, YCbCr 4:2:2 12/10/8bpp
1280x960 (SXGA-)60p RGB/YCbCr 4:4:4 12/10/8bpp, YCbCr 4:2:2 12/10/8bpp
1280x800 (WXGA)60p RGB/YCbCr 4:4:4 12/10/8bpp, YCbCr 4:2:2 12/10/8bpp
1280x768 (WXGA)60p RGB/YCbCr 4:4:4 12/10/8bpp, YCbCr 4:2:2 12/10/8bpp
1280x720 (HD)23.98/24/25/29.97/30/50/59.94/60p RGB/YCbCr 4:4:4 12/10/8bpp, YCbCr 4:2:2 12/10/8bpp
1280x60060p RGB/YCbCr 4:4:4 12/10/8bpp, YCbCr 4:2:2 12/10/8bpp
1152x864 (XGA+)60p RGB/YCbCr 4:4:4 12/10/8bpp, YCbCr 4:2:2 12/10/8bpp
1024x768 (XGA)60p RGB/YCbCr 4:4:4 12/10/8bpp, YCbCr 4:2:2 12/10/8bpp
800x600 (SVGA)60p RGB/YCbCr 4:4:4 12/10/8bpp, YCbCr 4:2:2 12/10/8bpp
720x576 (PAL)50p/50i RGB/YCbCr 4:4:4 12/10/8bpp, YCbCr 4:2:2 12/10/8bpp
720x480 (NTSC)59.94p/59.94i RGB/YCbCr 4:4:4 12/10/8bpp, YCbCr 4:2:2 12/10/8bpp
640x480 (VGA)60p RGB/YCbCr 4:4:4 12/10/8bpp, YCbCr 4:2:2 12/10/8bpp
*Applies only to the HDMI1 input with a HDMI 2.0 capable hardware revision 6.0 and later.
** Applies only to QDP/QRDP UHD/4K series monitors. This resolution is only supported for the HDMI1 (hardware revision 6.0 and later) and Display Port inputs.
